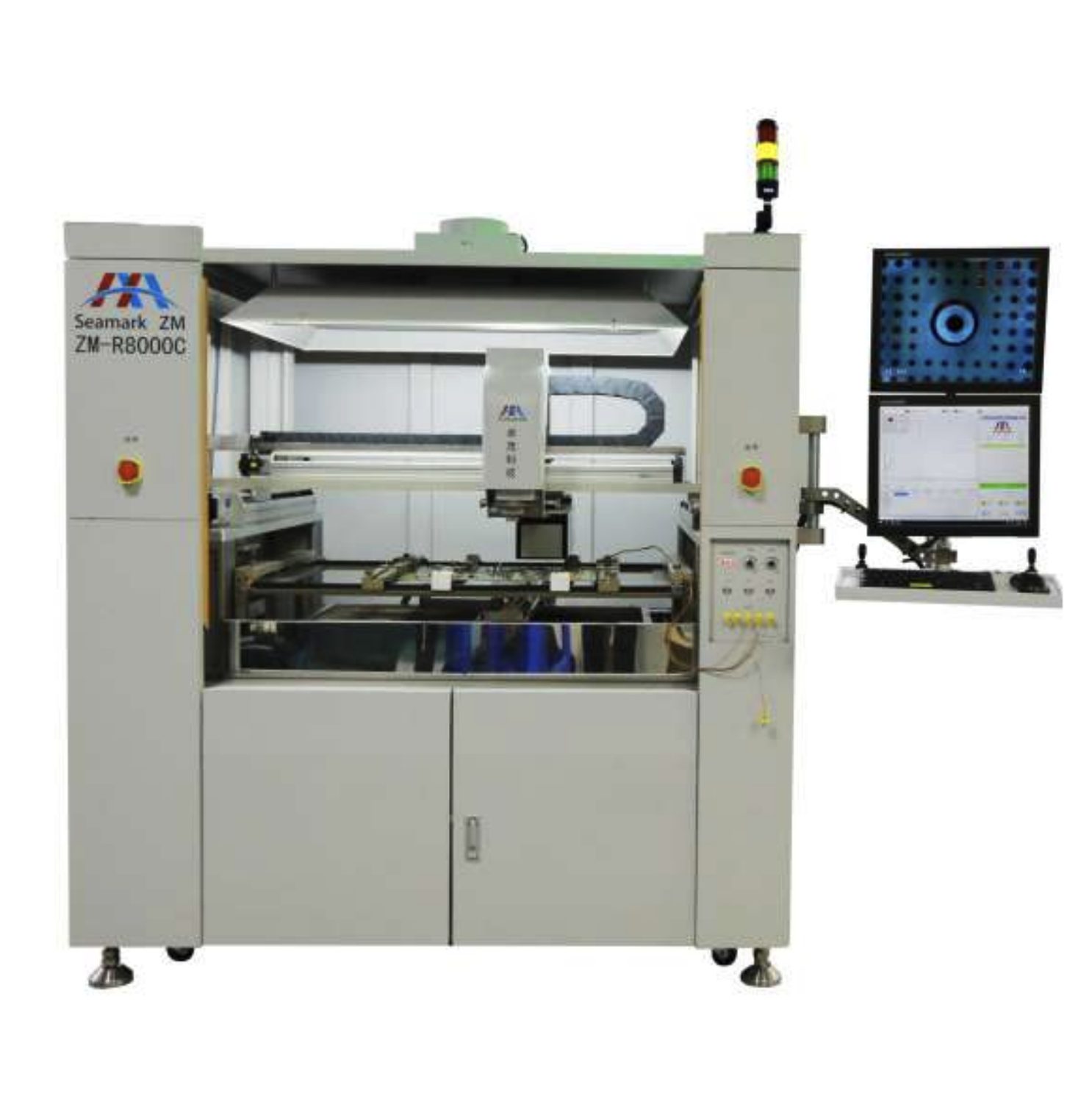

ZM-R8000c BGA & SMD Rework Station

R800C Large Precise Rework Station

R8000C is an ultra-large high-end optical alignment precise rework station, suitable for rework of 5G server and large server mainboards.

Total Power Max 33.8KW Max
Heater power upper temperature 2KW, Lower temperature zone 2KW, IR temperature zone 28KW, other power 1.8KW
Alignment accuracy ± 0.01mm
Temp. Control: k-type thermocouple closed-loop control with accuracy up to ± 1C
Temp sensor: 5 PCS
Positioning: L-groove with universal fixture (shaped fixtures can be customized)
PCB Size 900x660mm(Max); 50x50mm(Min)
Cooling: cool wind
Cooling rate: rapid cooling, 200-100C single borad cooling rate2-3C/s
Mounting Pressure <5N
Dimensions L1671xW1771xH1928mm
Weight 929KG
