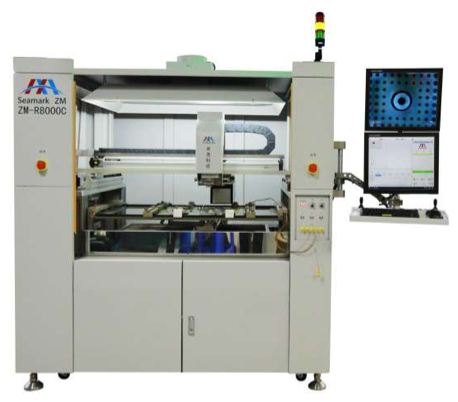

R8000C Large Precise Rework Station
R8000C is an ultra-large high-end optical alignment precise rework station, suitable for rework of 5G server and large server mainboards.Product Features:
- The whole machine is fully ESD protected, and complies with ESD protection standards.
- The safety design of the whole machine complies with the safety design specifications of GB / T15706-2012, and the relevant safety design requirements of GB / T19671 bimanual installation.
- The heating area is independently temperature controlled, and the process temperature can be designed according to the requirements, effectively avoiding PCBA deformation caused by uneven temperature, dual-protecting the heating power devices, and preventing the damage maintenance products caused by temperature's out of control.
- With drawer loading design, the stage can be stretched out, which is convenient for picking and placing the maintenance substrate.
- Using self-innovated image alignment technology can effectively solve the problem of visual alignment placement of large-size objects.
- The self-developed multi-function foolproof operating system is easy to operate and can be connected with MES / SAP.
- Equipped with a high-power silent smoke extraction system, the flux volatile gas generated during the PCBA rework process can be extracted and discharged in time.
Specifications:
- Power Supply - AC380V±10% 50/60Hz
- Total Power - 33.8KW Max
- Heating Power - Upper temperature zone (2KW) Lower temperature zone (2KW) IR temperature zone (28KW) Other power (1.8KW)
- Control System - Industrial PC + servo motion control system
- Alignment Accuracy - ±0.01mm (X,Y axis)
- Temp. Control - K-type thermocouple closed-loop control with accuracy up to ±1°C
- Heating Method - Top heating + Bottom heating + Mobile IR heating
- Temp. Sensor - 5 PCS
- Positioning - L-groove with universal fixture (shaped fixture can be customized)
- PCB Size - 900x660mm (Max); 50x50mm (Min)
- Temperature control - Full closed - loop control, temperature overshoot / fluctuation does not exceed 5°C, can automatically monitor the heating working status
- Cooling - Cool wind
- Cooling Rate - Rapid cooling, 200-100°C single borad cooling rate 2-3°C/s
- Mounting Pressure - <5N
- Dimensions - L1671xW1770xH1928mm
- Weight - 929KG
