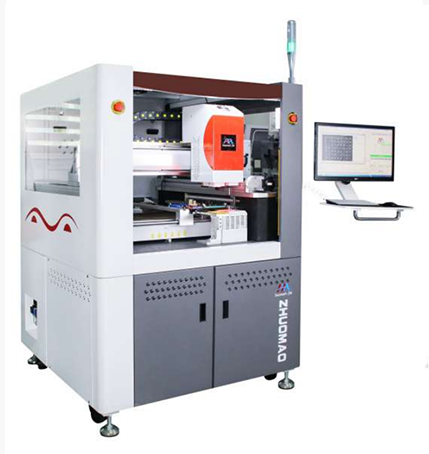

R8650C Smart BGA Rework Station
R8650C is a fully automatic visual alignment BGA rework station, suitable for automatic visual placement of various chip on large PCB boards (such as 5G communication boards), automatic welding, and automatic desoldering. It can be combined with SAP/ERP to realize the software linkup (optional), and to realize the temperature curve analysis with S/N as the retroactive condition.Features:
- Power Supply - AC380V±10% 50/60Hz
- Power - Total power 21.25KW Upper temperature zone (1.45KW) Lower temperature zone (2KW) Other power (1.8KW) Preheating temperature zone (16KW)
- PCB Size - 670x570mm(Max) ; 10x10mm(Min)
- BGA Chip Size - 100x100mm(Max) ; 1x1mm(Min)
- IR Temp. Zone Size - 645x524mm
- Motion Control - X/Y/Z
- External Temp. Sensor - 6 PCS
- Control System - Industrial PC + Servo motion control system
- Display System - 24 * SD display
- Alignment System - 5M pixels digital HD industrial camera+1.3M pixels industrial camera with telecentric auto-correction alignment
- Vacuum adsorption - Full automatic
- Alignment Accuracy - ±0.01mm
- Temp. Control - K-type thermocouple (closed-loop), intelligent temperature compensation system with accuracy up to ±1°C
- Feeding Device - semi-automatic
- Positioning - V-groove with universal fixture (shaped fixture can be customized)
- Dimensions - L1235xW1215xH1850mm
- Weight - 660KG
Optional:
- PCB support fixture
- BGA support frame
- Nozzle
- Vacuum nozzle
