Medical devices are becoming increasingly sophisticated as new technologies emerge. Due to their role in safeguarding human lives, they require exceptionally high levels of quality and reliability. These instruments are often constructed using specialty components and materials uncommon in other electronics. As a result, soldering medical devices presents a unique set of challenges that demand advanced processes.

The Unique Challenges of Soldering Medical Devices

The soldering processes for medical devices involve a wide range of techniques, each requiring specialized tools and approaches. These techniques are tailored to fit the various apparatuses in this industry. Medical machines can be classified into two main categories, each with stringent quality standards surpassing those of industrial and consumer electronics. These are:

Large Diagnostic Equipment

Medical equipment such as MRI machines and CT scanners are incredibly costly and contain intricate components and printed circuit boards (PCBs). Consequently, they demand high-quality soldering. The construction of such equipment also requires special metals, further complicating the soldering process and demanding unorthodox soldering techniques.

Devices in Contact With the Human Body

Gadgets such as catheters, pacemakers and gastroscopic hardware, which are designed to get into direct contact with the human body, pose unique soldering challenges. Due to their small and precise nature, these instruments use tiny and thin PCBs and components. The use of flux, which contains strong acids, is discouraged in these machines. Soldering such intricate components by hand is nearly impossible, thus necessitating the need for specialized soldering practices.

Soldering Solutions for Medical Devices and Equipment

Soldering has become flexible to meet the strict demands of the medical industry,

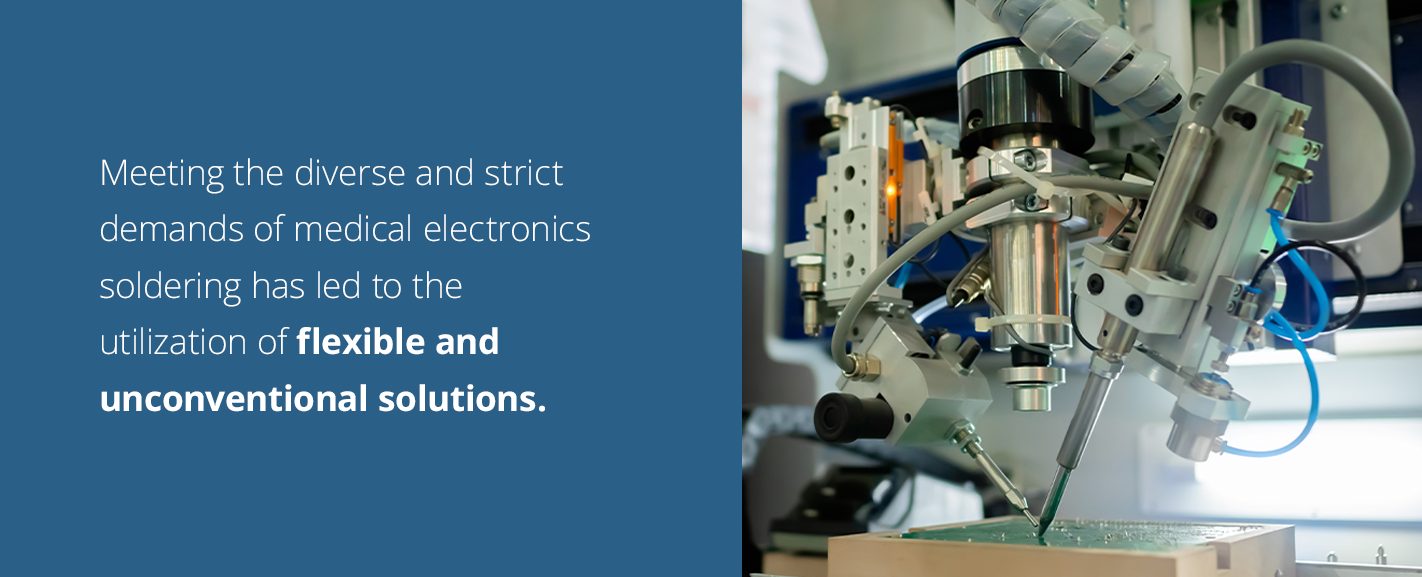

Meeting the diverse and strict demands of medical electronics soldering has led to the utilization of flexible and unconventional solutions. Some of these include:

  • Robotic soldering: Robotic soldering systems excel in precision, repetitive tasks and maintaining consistent quality across production lines. This type of soldering makes it possible to create small and intricate components accurately.
  • Laser soldering: Laser soldering is an advanced technique that offers accurate results in confined spaces. Furthermore, this procedure has no physical contact with the soldered materials. It is ideal in medical applications where flux use is usually unwanted.
  • Ultrasonic soldering: Ultrasonic soldering is a process that utilizes the cavitation effect generated by ultrasonic vibrations to remove oxides from the surface of a material. This technique reduces the need for flux during soldering and achieves high-quality joints.

Meet the Demands of Modern Health Care

Soldering technology must evolve with the needs of medical device manufacturing to ensure precision, reliability and safety. By embracing innovative soldering processes and materials throughout our services and training, we at Precision PCB Services strive to meet the stringent demands of the medical industry. Contact us for more information.
