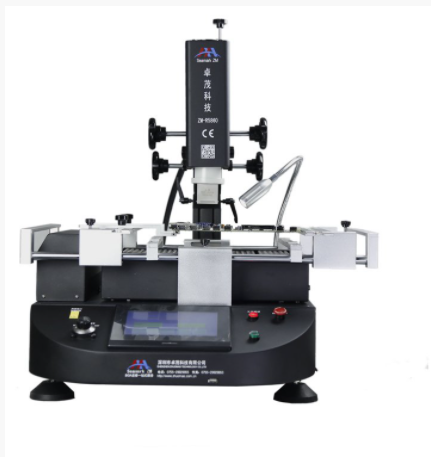

ZM-R5860 BGA Rework Station
The Zhuomao ZM-R5860 BGA Rework Station is an entry-level BGA Rework Station without Vision Assist. Has upper and lower spot heaters and a 2700 Watt area heater. Easily program profiles up to 8 zones.
Features:
- Total power - 4800W
- Top hot air heater - 800W
- Bottom hot air heater - 1200W
- Bottom IR preheater 2700W
- Voltage - 210-240V
- PCB board positioning - V-groove, PCB support adjusted in any direction with universal fixture.
- Temp. control - (K Sensor) closed-loop, independent heating, precision within ±3 degree.
- Machine parts material - Highly sensitive temperature control module+Touch screen (Taiwan)+Delta PLC.
- PCB board size - Max 410*370mm Min 20*20 mm
- Dimensions - 635*600*560mm
Accessories Include:
- 5 pcs nozzle set.
- Online training videos.
- On-site installation & training is also available for an additional fee.
